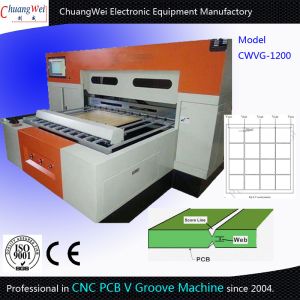

Super V-Cut PCB Separator Machine Marking V - Cut Line On PCB Panel
Details:
1. According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines, building PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design stage of the product's features and performance for checking and testing, product performance to meet the design targets, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance.
2. All of the base of the machine using the "Tarzan Qing" or "Jinan Qing" granite, and force the elimination of experience, strong rigidity, good stability.
3. X Y Z axis positioning drive using imported high-performance AC servo motor drive, to achieve a high-speed high-precision positioning and effectively increase productivity.
4. Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision gear, location.
5. With dagger functions for complex PCB / MCPCB jump knife Processing
6. Available for high-precision machining for various sizes of V-groove board 0.4 ~ 3.2mm different thickness of boards
7. The first knife into the center of the nail PIN 4.5mm above the minimum reserve
8. The minimum diameter of a knife grinding 114MM, the highest tool life
9. Using WINDOWS Chinese operation interface, as data processing and item number management.
10. Suitable for single and double sided, multilayer, forming the front surface of the aluminum plate board use.
11. During V-CUT processing, with automatic gauge control, residual thickness detection function.
12. Japan's imports of high-speed spindle motor, V groove cut no edges, longer tool life
13. Use intelligent control systems, uninterrupted, stable operation, easy to difficult to fault repair.
14. Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole.
15. Enter the information at the same time having AB, artificial steering, primary processing.
16. Available (optional) highly efficient dust collection system, which can be kept clean workshop environment
Specifications
CNC PCB V Groove Machine
1. Make v groove on pcb
2. Max PCB size:1300x650x3.5mm
3. Min PCB size:100x100x0.4mm
4. PCB V cutter
Machine Accessory
| Accessory | Brand | Place of Origin | Remark |
| Guide Rail | PMI | Taiwan | |
| Guide Screw | TBI | Taiwan | |
| Servo Motor | Fuji Electric | Japan | |
| Spindle motor | Fuji Electric | Japan | |
| PC | HP | China | HP 19” Business Computer |
| Body | Marble | Jinan of China | |
Configuration Parameters:
| Item | Parameter | Remark |
| Size | 1900 × 2280 ×1585mm | L*W*H |
| Working Height | 920±50mm | |
| Weight | 3000kg | |
| Power Supply | AC 220V,50/60HZ | |
| Capacity | 3.0KW | |
| Air Pressure | 5kg/cm2 | |
| Working Platform | Max:1550mm*630mm | |
| Thickness | 0.3~3.2mm | |
| Blade spec | Outer Dia:φ120mm Inner Dia:φ25.4mm | |
| Positioning Dowel | Dia:2MM(7PCS) | |
| Min Distance between the first V score line & Pin hole | 4.5MM | |
| Blade thickness | 2mm | |
| V-groove Residual thickness accuracy | ±2mil | |
| V-groove Pitch accuracy | ±2mil | |
| V-groove Parallel precision | ±2mil | |
| Blade Cutting Speed | 6,000R.P.M. | |
| Cutting Speed | 0~50m/min | |
| Displace Speed | Max 70M/MIN | |
| Dust Collector | 2in plumbing 3.5KW | |
CNC PCB V Groove Machine, CNC PCB V CUT Machine
Product Description
Usage: Make V groove/cuts on pcb.
Parameters
Model: CWVG-1200
Max PCB size:1300x650x3.5mm
Min PCB size:100x100x0.4mm
Min remain thickness:0.2mm
Process accuracy indicator:0.05mm
Min Jump cut space: 15mm
Cut speed(adjustable)(1-60)M/MIN
Minimum space close to holes:6mm
Spindle parameters(2500-6000)RPM
Size:2100x2000x1550MM
Power: Rated currency:750KW
Voltage:220V
Air pressure:0.5KP
Weight:3.0T
The most funtion is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.
Main features:
1. High efficiency: It merely needs a few minutes to make a piece of PCB.
2. Accuracy: The min error of numerical control drill hole less than 1mil
3. Automatism and convenience: Simple software hardware installation, operate the manufacturing process by striking the function keys of operation system.
